VLX 100 Arched / Custom Door

VLX 100 Arched / Custom Door in Sunrise, FL | Sightline Windows & Doors Sunrise

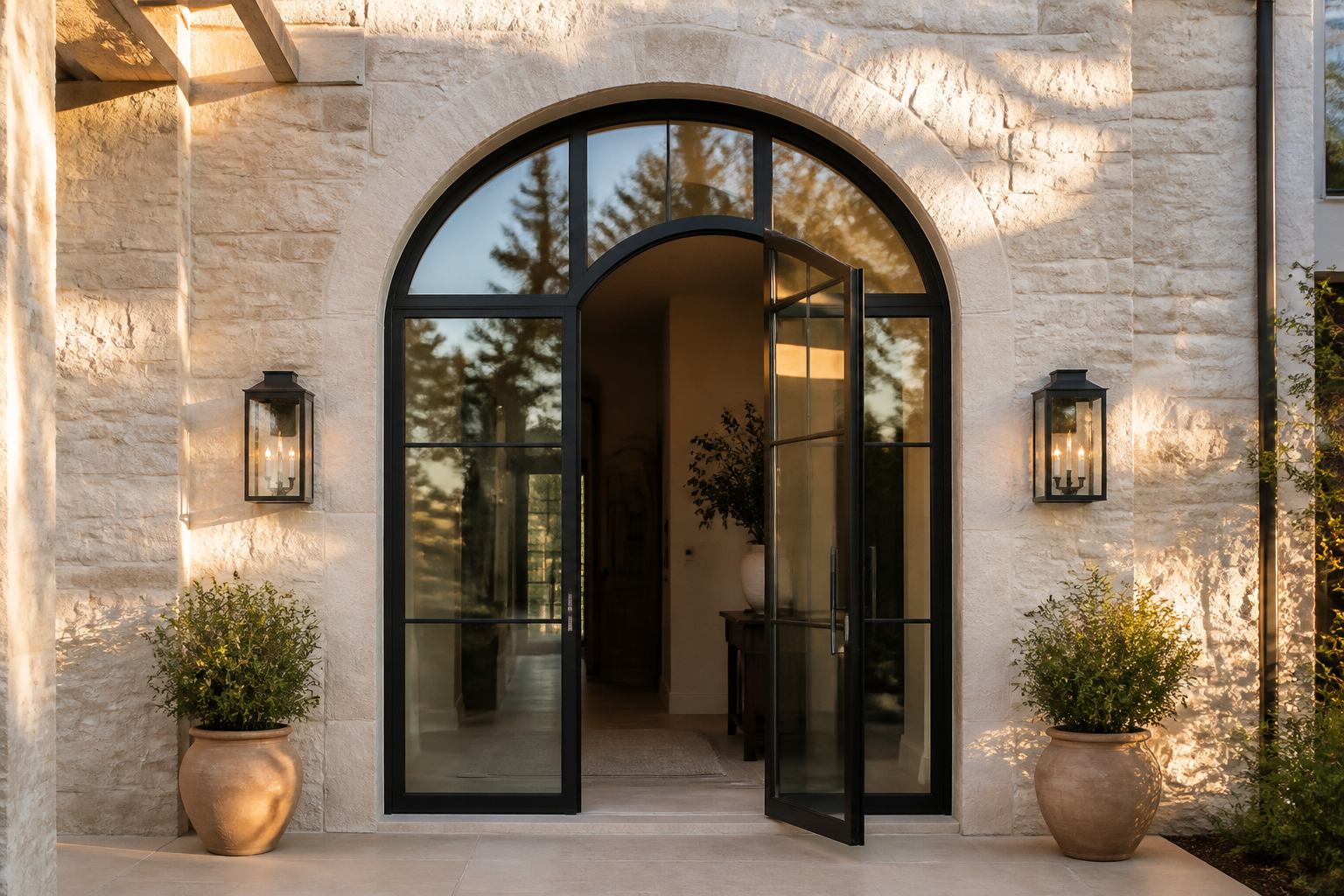

The VLX 100 Arched / Custom Door is a CNC-bent aluminum arched entryway built for homeowners who want their front door to do more than open and close. It’s a curved architectural statement with structural precision, engineered by ViewLux and installed by our team at Sightline Windows & Doors Sunrise right here in Sunrise, FL. We see this door on modern coastal builds in Sawgrass Mills, Mediterranean-inspired homes near Welleby, and custom renovations throughout western Broward where standard rectangular doors fall flat. As an authorized ViewLux installation partner, we don’t just sell this door. We measure, fabricate-to-order, and install it with AAMA-certified methods that keep your manufacturer warranty intact. Every arched unit we put in is plumbed, leveled, and sealed to perform through South Florida’s wet season and hurricane season alike. Call (754) 254-5294 to schedule your free on-site measurement and see how a custom radius entry can transform your home’s first impression.

Call (754) 254-5294

Product Overview - VLX 100 Arched / Custom Door

There’s a reason architects specify arched entries for statement homes. The radius softens a facade, draws the eye upward, and signals craftsmanship before a visitor ever touches the handle. The VLX 100 delivers that effect through CNC-bent aluminum framing, not retrofitted straight stock forced into a curve. The computer-controlled bending process holds tight tolerances across the arch, so your door operates smoothly and seals properly for decades.

We install the VLX 100 across Sunrise, FL in three main scenarios: new construction where the architect drew a radius opening, remodels replacing dated French doors with a single dramatic entry, and additions where homeowners want to distinguish a new wing from the original structure. The 2.56-inch profile width gives the frame visual substance without bulk. At 0.098-inch wall thickness, the extruded aluminum resists the denting and flexing that thinner entry-level systems suffer in our coastal environment.

Because each unit is custom fabricated to order, you’re not limited to standard heights or widths. We’ve installed VLX 100 arches spanning modest 36-inch garden entries up to double-wide grand entrances in Sunrise’s custom home communities. The structural precision matters most where the arch meets the jamb. Our installation team sets these points with laser levels because even a slight twist in the rough opening telegraphs through a curved frame in ways a rectangular door forgives.

Technical Specifications

Before

After

Performance Features

Thermal Efficiency

The VLX 100 uses thermal break technology to separate interior and exterior aluminum surfaces, cutting conductive heat transfer. NFRC-rated performance means the numbers are verified, not claimed. In Sunrise, FL, where summer attic temperatures climb past 140 degrees, that thermal break keeps your conditioned air inside and your energy bills predictable.

Acoustic Performance

Multi-chamber frame construction and precision gasketing dampen exterior noise. We’ve had homeowners in Sunrise report noticeable reduction in lawn equipment and traffic sound after replacing hollow-core entries with the VLX 100. Pair it with laminated glass for the best results.

Airtightness & Weather Seal

Compression seals at the sweep, jamb, and head maintain positive contact through seasonal expansion cycles. The AAMA 812 low-expansion foam sealant we apply at perimeter joints stays flexible, so your airtightness rating holds year after year in our humidity.

Waterproofing

Sill pan integration, weeped drainage channels, and dual-stage seals manage the sideways rain that hits Sunrise during summer storms. Water that breaches the primary seal gets captured and expelled before it reaches your subfloor.

Wind Resistance

The VLX 100 is wind-load rated for local climate requirements, including the pressure cycling of tropical weather systems. In Broward County, that matters. The 0.098-inch wall thickness and reinforced corner construction keep the frame square when gusts peak.

Security & Hardware

Multi-point locking hardware engages at the sill, center, and head of the door. The laminated glass option adds shatter resistance. We source hardware that meets AAMA forced-entry resistance standards, not just decorative grade.

Color & Glass Options

Six finishes let the VLX 100 read modern, traditional, or coastal depending on your home’s architecture. Premium Black and Pure White dominate our Sunrise installations on contemporary builds, clean and graphic against stucco or stone. Anodized Silver suits mid-century renovations where owners want to honor the original metal aesthetic. Bronze and Champagne read warmer, pairing well with the terracotta roofs and coral stone accents common in Sawgrass and Sunrise Golf Village. Teak Wood finish gives you the grain pattern without the maintenance of actual wood in our climate, a smart choice for homeowners who want organic texture without rot risk.

Glass selection drives function more than aesthetics. Clear glass maximizes daylight and views. Frosted and Obscure options privacy-screen bathrooms, home offices, or side entries facing neighbors. Low-E coating is standard recommendation for west-facing doors in Sunrise, reflecting infrared heat while passing visible light. Tempered glass meets safety code for doors and sidelites. Laminated glass adds impact resistance and sound damping, the upgrade we suggest for homes near major roads or in hurricane-prone zones.

Installation by Sightline Windows & Doors Sunrise in Sunrise

We’ve replaced enough botched installs to know that a premium door with sloppy installation performs worse than a budget door set right. That’s why Sightline Windows & Doors Sunrise follows AAMA 2400/2410 installation standards on every VLX 100 we put in.

Our process starts with a pre-install inspection of your rough opening. We check for square, level, and structural integrity. Arched openings are less forgiving than rectangles, so we often find headers that need reinforcement or sills that need reframing before the custom unit arrives. We catch this early so your lead time isn’t wasted on a door that won’t fit.

Setting the frame, we use laser levels and come-alongs to hold the radius true while we shim and anchor. Level, plumb, square isn’t a slogan for us. It’s a sequence we check at six points minimum. Once the frame is fixed, we apply AAMA 812 low-expansion foam sealant at all perimeter joints. Standard caulk shrinks and cracks; the specified foam maintains its seal through thermal cycling. We cap with compatible backer rod and sealant for UV protection.

Final steps include operational testing, hardware adjustment, and a water spray test that simulates wind-driven rain. We clean the site and walk you through the door’s operation and warranty documentation.

Here’s what homeowners in Sunrise, FL need to understand: ViewLux warranties require professional installation per manufacturer specifications. DIY or handyman installs that skip the thermal break continuity, use wrong sealants, or fail to flash properly void that coverage. Our authorized partner status means your warranty stays intact and your door performs as engineered for our local climate, from summer humidity to tropical storm wind loads.

Frequently Asked Questions - VLX 100 Arched / Custom Door

What is the lead time for the VLX 100 Arched / Custom Door?

Lead time typically runs 6 to 10 weeks from final measurement and deposit, because each unit is CNC-bent and fabricated to your exact radius and dimensions. We coordinate with ViewLux production and schedule your installation slot in advance so you’re not waiting empty-handed. Call (754) 254-5294 to check current production schedules.

Does the VLX 100 qualify for energy tax credits?

The VLX 100’s NFRC-rated thermal break construction and Low-E glass options may contribute to whole-home energy efficiency improvements that qualify for federal or state credits, though eligibility depends on your total project scope and current tax year regulations. We provide NFRC performance data and product certification documents your tax preparer needs. Call (754) 254-5294 and we’ll share the specific ratings for your configuration.

What warranty comes with the Arched / Custom Door?

ViewLux backs the VLX 100 with a limited lifetime warranty on the aluminum frame and a 20-year glass seal warranty, contingent on professional installation by an authorized partner like Sightline Windows & Doors Sunrise. Our workmanship carries a 5-year installation guarantee covering leaks, operational issues, and seal failure traceable to our labor.

Can I customize the size?

Yes, the VLX 100 is custom fabricated to order with no standard maximum span, so we can accommodate single entries, double doors, and oversized statement openings. We template your rough opening on-site before anything goes to fabrication, ensuring the radius, height, and width match your architecture exactly.

How do I maintain aluminum frames in Sunrise’s climate?

Rinse frames quarterly with fresh water to remove salt and mineral deposits, wash annually with mild soap and a soft brush, and lubricate hinges and locks with silicone spray twice yearly. Avoid abrasive cleaners or pressure washers that can damage finishes. The powder coat and anodized finishes on the VLX 100 are formulated for coastal exposure, but simple maintenance extends their life significantly in our humidity.

Get a Quote - VLX 100 Arched / Custom Door in Sunrise

A custom arched entry is a significant investment that pays back in daily satisfaction and resale value. Let’s start with a free on-site measurement in Sunrise, FL. We’ll assess your opening, discuss radius options, show you finish samples, and deliver a written line-item quote with no obligation. Call Sightline Windows & Doors Sunrise at (754) 254-5294 or fill out our project form. We’ll have your VLX 100 Arched / Custom Door measured, fabricated, and installed with the precision this door deserves.

Written by the team at Sightline Windows & Doors Sunrise, authorized ViewLux installation partner serving Sunrise, FL.
